Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Aluminum Road Stud Reflectors Features:
•High shock resistance, energy-saving, environment friendly.
•Automatically starts to work when night falls or with the onset of inclement weather.
•These aluminum alloy LED Road Stud Reflectors are naturally charged by the sun.
•The LED lights of Road Stud Reflectors come on automatically as soon as it starts getting dark every night.
•Cost effective, Road Stud Reflectors easy to install and require absolutely no wires or maintenance.
•Dramatically enhances the look of your garden/yard/driveway.
•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.
•Pavement marker Road Stud Reflectors accept OEM/ODM
LED Road Stud Reflectors Light Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: | The solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| LED: | Diameter 5mm;2pcs or 3pcs per side |

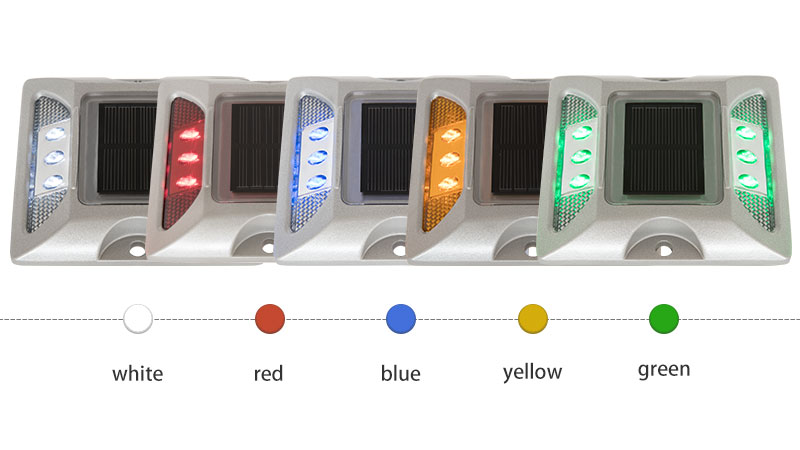

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | L123*W133*H22mm+55mm (L4.84″*W5.24″*H0.87″+2.17″) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm (2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65″*7.28″) |
Application of Aluminum Road Stud Reflectors D3:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
How to install Aluminum Road Stud Reflectors with shank D3:
1.Carefully mark the distance between the placement of the Road Stud Reflectors. To prevent adverse effects on the ground, use appropriate tools, such as core drills, which have a diameter of 35mm and a depth of 55mm.
2. Remove all debris from the mounting hole.
3. Pour epoxy resin into the hole according to the manufacturer’s instructions.
Make sure that the mounting holes are straight. Make sure that the mounting hole is large enough to allow epoxy resin to surround the Road Stud Reflectors.
4. Adjust the lighting surface of the Road Stud Reflectors to the desired viewing angle.
5. Make sure that the epoxy resin adheres evenly to the mounting hole and the Road Stud Reflectors. Make sure that the bottom of the Road Stud Reflectors is securely mounted on the mounting surface to ensure that zero “surface floating” occurs. (Space between the installation sign and the bottom of the Road Stud Reflectors).
6. After curing the LED Road Stud Reflectors for 6-8 hours, remove the installation of the isolation facility.
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply: USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
